Bike Saddle Design

We were commissioned to flesh-out the design for an innovative new bike saddle design. Initially then, a draft 3D model was created from some rough design sketches & ideas.



Freely available data such as 'sit bone' sizing was collated into this initial design phase.

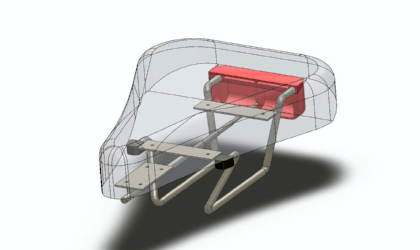

The initial design underwent numerous iterations before a final design was agreed. A fully articulated 3D assembly was then created.

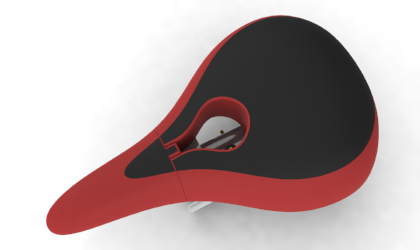

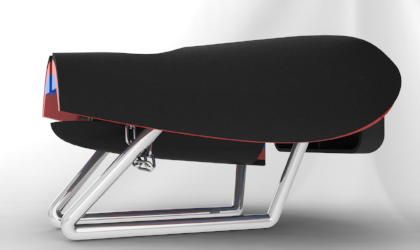

Finally, elements such as fabric cuts & returns were split from surfaces, before 3D visuals and design drawings were extrapolated.
