Mobile Medical Unit 3D Visuals

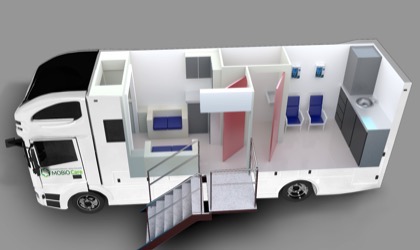

This vehiclular 3D model was to be an accurate representation, both aestheticlly and dimensionally.

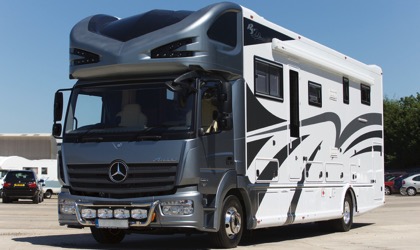

As no 2D blue-prints were available, this was accomplished via photographs used for mesh modelling, facilitated by a simulated 3D camera perspective view.



Budgets being realistic for a project of this type, additional attention was given to textures, lighting and scene composition, facilitating the 3D visuals shown here.

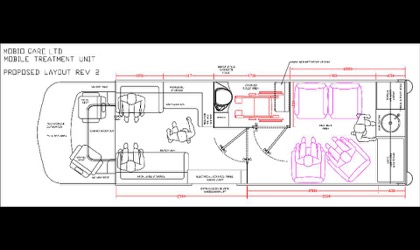

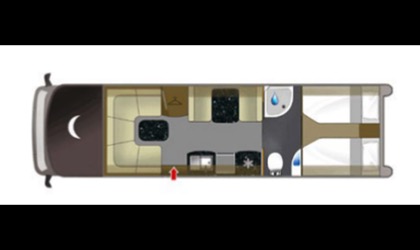

General dimensional information, freely avaialable online, allowed accurate 3D model scaling; an accurate 3D interior mock-up follwed, cretaed from the ground up from a basic 2D floor plan.

PAST PROJECTS
"Our projects have ranged from small one-off designs to large scale corporate plans"

Projects ranging from office, retail and space planning, virtual 3D builds of construction systems to 3D modeling of components & assemblies. We have accumulated years of invaluable experience working on CAD projects with large commercial organizations and small companies, inventors, entrapreneurs & property developmers.



CADVis Past Projects Example
