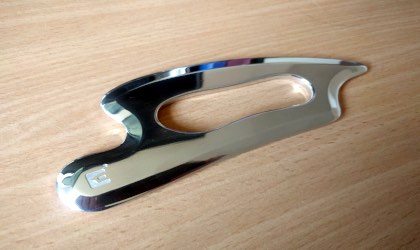

Myofascial Instrument 3D Model

We were asked to produce all design drawings requird for fabrication. This was to include both dxf, stp & iges files - incapsulating 2D cut and 3D volumetric data.

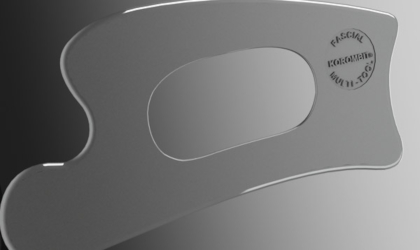

Initially, the requirement was for a bespoke parabola about the edge of the instrument. 3D surface modelling software was employed to succesfully achieve this goal. However, this proved too problematic at fabrication side.

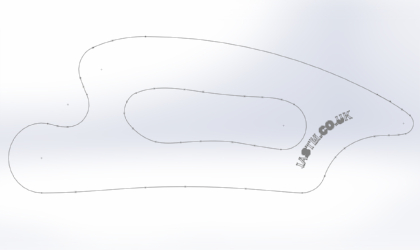

Subequently then, the design was revised to a bevelled edge, necessitating revisions to the instrument 2D profile to accomodate the required bevel constraint.



Latterly, various iterations of logo were produced and trialled, followed finally by 2D design dawings for an instrument 'container'.
